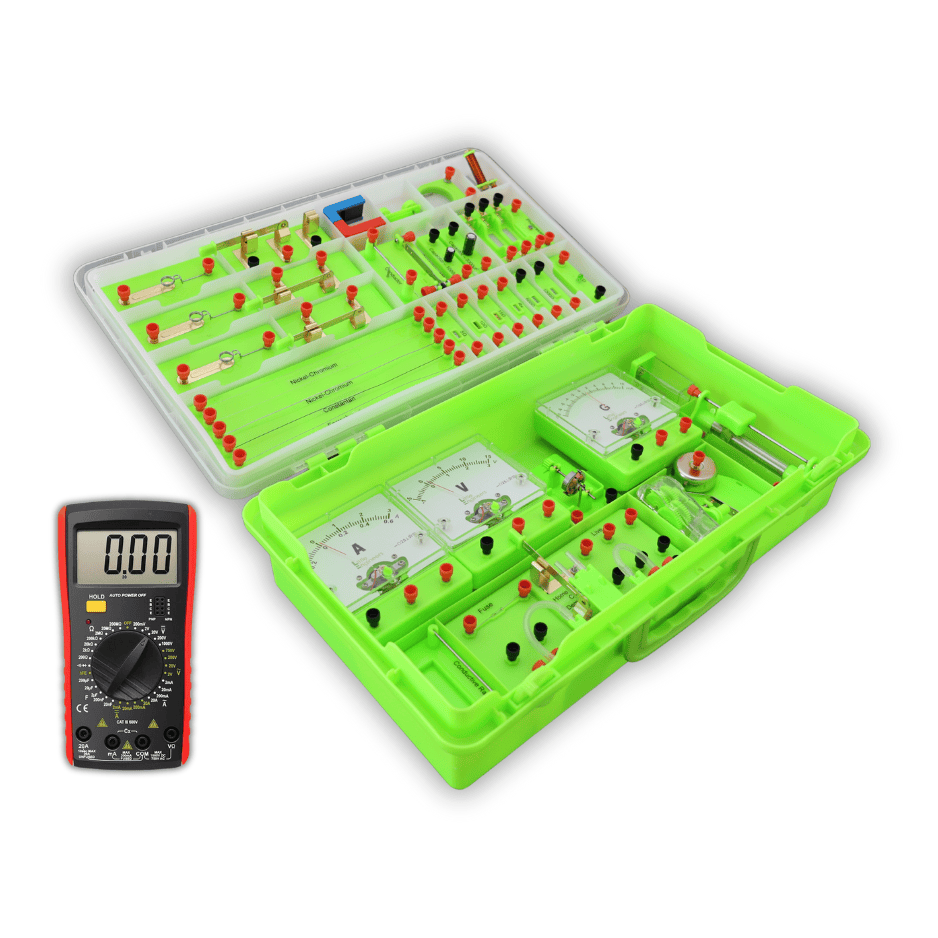

Electricity & Magnetism Lab with Resistor–Capacitor (RC) Experiments is a classroom-ready practical resource for teaching core electricity, magnetism, and introductory transient circuits in junior science and high school physics. It includes everything in the standard Electricity & Magnetism Lab, plus capacitor modules, additional resistor modules, and a multimeter so students can investigate capacitor charging and discharging, time constants, and exponential behaviour in RC circuits.
Designed for small-group practicals and repeated use, it comes with student-friendly experiment manuals that guide learners step by step, support inquiry-based learning, and strengthen students’ understanding of real-world applications of physics.
Experiments:
- Series circuits
- Parallel circuits
- Dimmer switch
- Resistance in wires
- Ohm’s Law
- Resistor-Capacitor (RC) circuits
- Light Emitting Diode (LED)
- Photoresistor
- Heating effect of electric current
- Motor effect
- Electromagnetic induction
- Magnetic effect of electric current
- Electric motor
- Electric generator
- Electromagnetic switch (relay)
- Electric bell
- Building a simple electromagnet
- Magnetic forces
- Magnetic levitation
- Home electrical circuit, and more
Kit includes:
- 3 x Bulb holder
- 3 x Bulb
- 2 x Switch
- 1 x Two-way Switch
- 3 x Battery holder
- 6 x Resistor module (5Ω, 10Ω, 15Ω, 500Ω, 1000Ω & unknown resistance)
- 2 x Capacitor module (1000μF & 3300μF)
- 1 x Resistance demonstrator
- 1 x Rheostat
- 1 x Multimeter
- 1 x Voltmeter
- 1 x Ammeter
- 1 x Galvanometer
- 1 x Circular coil
- 1 x Photoresistor module
- 1 x LED module
- 1 x Electromagnetic switch
- 1 x Electromagnet
- 1 x Conductor module
- 1 x Magnetic needle
- 1 x Conducting rails
- 1 x Copper tube
- 1 x Joule’s Law Apparatus
- 1 x Electric motor
- 1 x Hand crank
- 1 x U-shaped magnet
- 1 x Electric bell
- 1 x Tube
- 2 x Ring magnet
- 2 x Nail
- 1 x Copper wire
- 1 x Car
- 2 x Bar magnet
- 1 x Electroscope
- 1 x Static electricity set (rods and fabric strips)
- 1 x Home electrical circuit demonstrator
- 3 x Fuse
